Optical Power Multimeter With Light Source OTM-300B

Item No.:OTM-300B
The item is located in Sydney, Australia and we ship to you only 4-5 days, 3 years warranty. No shipping cost, no value
added tax
Buy it Now: AUD499.00   FREE Shipping
Quantity :
         Sub Total: AUD499.00
Manufacturer Specifications:
Product Description
FEATURES

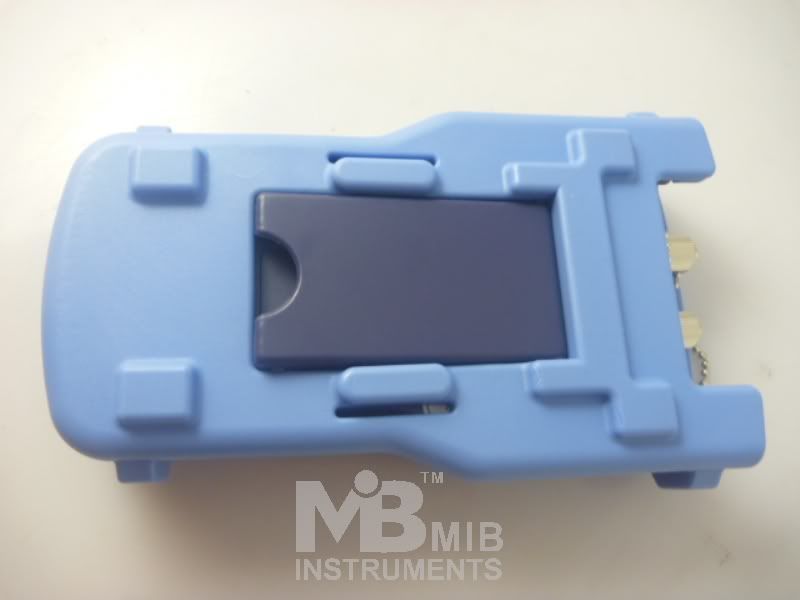

Simple appearance, beautiful professionally designed with shock absorbing gum case,More effectively protect the optical Multi-meter
Linear(mW)& nonlinear(dBm)displaying function
Optical power meter calibrated wavelength (nm):850nm、1300nm、1310nm、1490nm、1550nm、1625nm
1310/1550 or 1310/1490/1550 Multi-wavelength laser output
CW and modulation of 270Hz, 1kHz and 2kHz for laser source
650nm visible red light output(option)
CW and modulation of 1Hz and 2Hz for visible red light

The laser source output power adjust, four grade output, step -4dBm

Backlight display automatically or manually optional, automatically off can be set

Two AA batteries, easy to change


Photobucket

Photobucket


SPECIFICATIONS


Optical power meter specifications:

Model

OTM-300

OTM-300B

Power Range (dBm)

-70+10

-50+26

Detector Type

InGaAs

Wavelength Range(nm)

8001700

Uncertainly

±5%

Calibrated Wavelength (nm)

85013001310149015501625

Display Resolution

Linear0.1%  Nonlinear0.01dBm



Laser source specifications:


OTM-300

OTM-300B

Output wavelength (nm)

1310/1550

1310/1490/1550

Emitter Type

FP-LD

Output PowerdBm

-6

0

Output Frequency (Hz)

CW/270/1K/2K

Fiber Type

SMMM

Connector

FC/PC



Other Specifications:

Operating Temperature()

-10+60

Storage Temperature()

-25+70

Auto off Time(min)

10-120OFF

Battery operating Time (h)

38

Dimensions (mm)

168×103×45

Power

Two AA batteries

Weight(g)

300



Photobucket

Photobucket

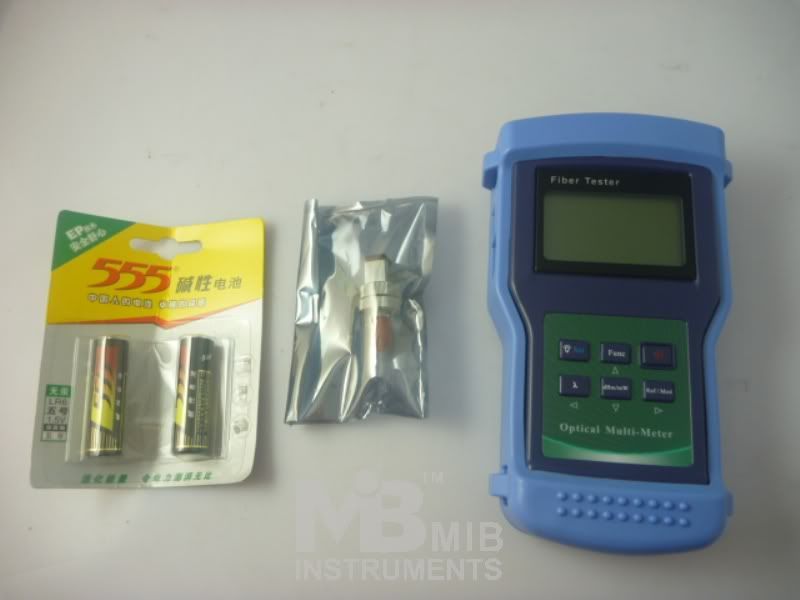

Package included:OTM-300B*1
