RIGOL DS1062CA 60MHz DUAL CH DIGITAL COLOR OSCILLOSCOPE

Item No.:DS1062CA
We ship to you only 5-8 days,32 years Rigol warranty.


Buy it Now: AUD959.00   FREE Shipping
Quantity :
         Sub Total: AUD959.00
Manufacturer Specifications:

YOU ARE NOW BIDDING ON:



*BRAND NEW-FACTORY DIRECT*
RIGOL DS1062CA 60MHZ 2 CHANNEL
DIGITAL STORAGE OSCILLOSCOPE.


Rigol DS 1062CA 60 MHz Digital Storage Oscilloscope

Features:
  • The 2 GSa/s maximum real-time sample rate,the 50
  • Up to 2000 wfms/s refresh rate
  • Ultra Compact Design with small footprint save your  bench space
  • 5.7’ 64K TFT color LCD, bright and vivid waveform display
  • Memory depth: 10 kpts (Single Channel), 5 kpts (Dual Channels)
  • Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternate
  • Adjustable trigger sensitivity: Effectively filter noise from trigger signal and avoid false trigger
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure modes
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT, Invert
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counters
  • Dual channels plus external trigger. Bandwidth including 60 MHz, 100 MHz, 200 MHz, 300 MHz
  • Standard interface: USB Device, RS-232;USB Host, to support USB disk and USB printer
  • Standard configuration: Pass/Fail test,the signal out of
  • Multi-language user interface, built-in help system
GSa/s maximum equivalent time sample rate and up to 300 MHz of bandwidth ensures you capture and observe your entire signal the pass fail function is isolated to prevent unwanted interference

Easy to Use Features:


Adjustable waveform intensity provides a personalized
waveform display









File System
Easy to use file system allows for both USB disk and local file storage

Versatile Trigger Modes:

Adjustable Trigger Sensitivity
The ability to filter noise from the signal avoids false
triggers




Alternative Trigger
Provides a true dual time base display that was common
in analog oscilloscopes








Slope Trigger
Triggers on the signals rise time or fall time that
is user defined

Rise Edge and Fall Edge Trigger
Mainly used to view eye-diagrams formally only available in more advanced DSO

Specifications:


Logic Analyzer Modes:

Mixed Signal Oscilloscope (MSO) with 16 channels Logic Analyzer (LA). LA is divided into two
groups: D7-D0, D15-D8. Each works Separately.

Logic Analyzer Module
Pattern Trigger
Duration Trigger

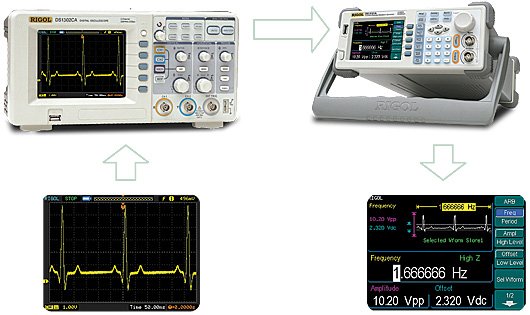

Signal Regeneration:


The DS1000CA series can be directly connected with the Rigol DG series function/arbitrary waveform generators. When connected with the built-in USB port of DS1000CA, the DG series function/arbitrary waveform can regenerate waveforms by visiting waveform memories of the latter's.


Advanced Performance:


Fast Sample Rate

DS1000A can capture fast signals with 2 GSa/S
maximum real-time sample rate and
50 GSa/S
maximum equivalent sample rate.





Fast Refresh Rate
Up to 2000 wfms/s refresh rate provides for superior
viewing of changing waveforms and
sporadic events


Includes:
